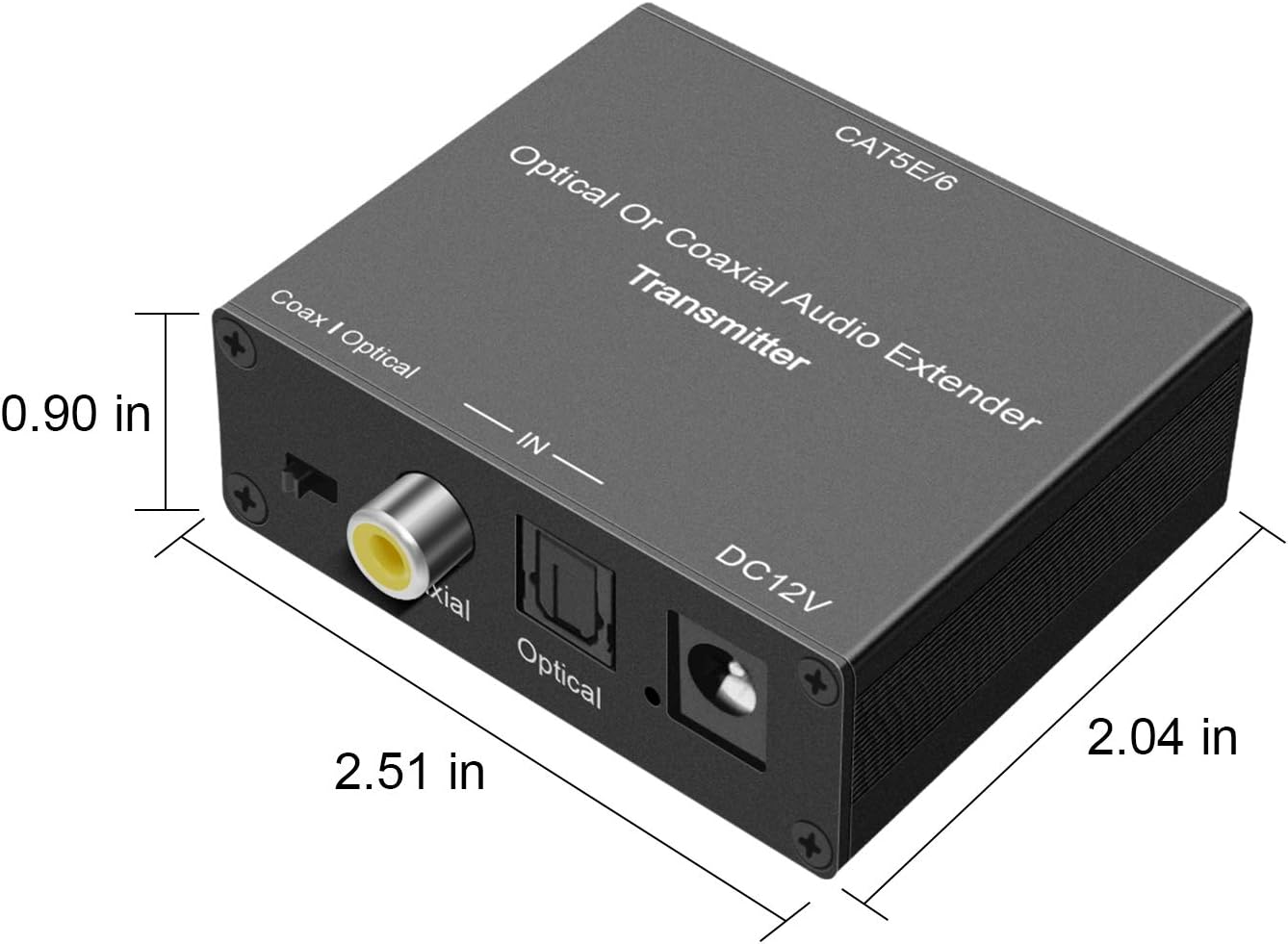

Digital Audio Extender Digital Optical/Coaxial Digital Audio Extender/Converter Over Single Cat5e/6 Cable (PoC) up to 500’ Standard Supported for LPCM, DD5.1, DTS, and D True HD
Product details
| Management number | 221631630 | Release Date | 2026/05/03 | List Price | US$16.00 | Model Number | 221631630 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

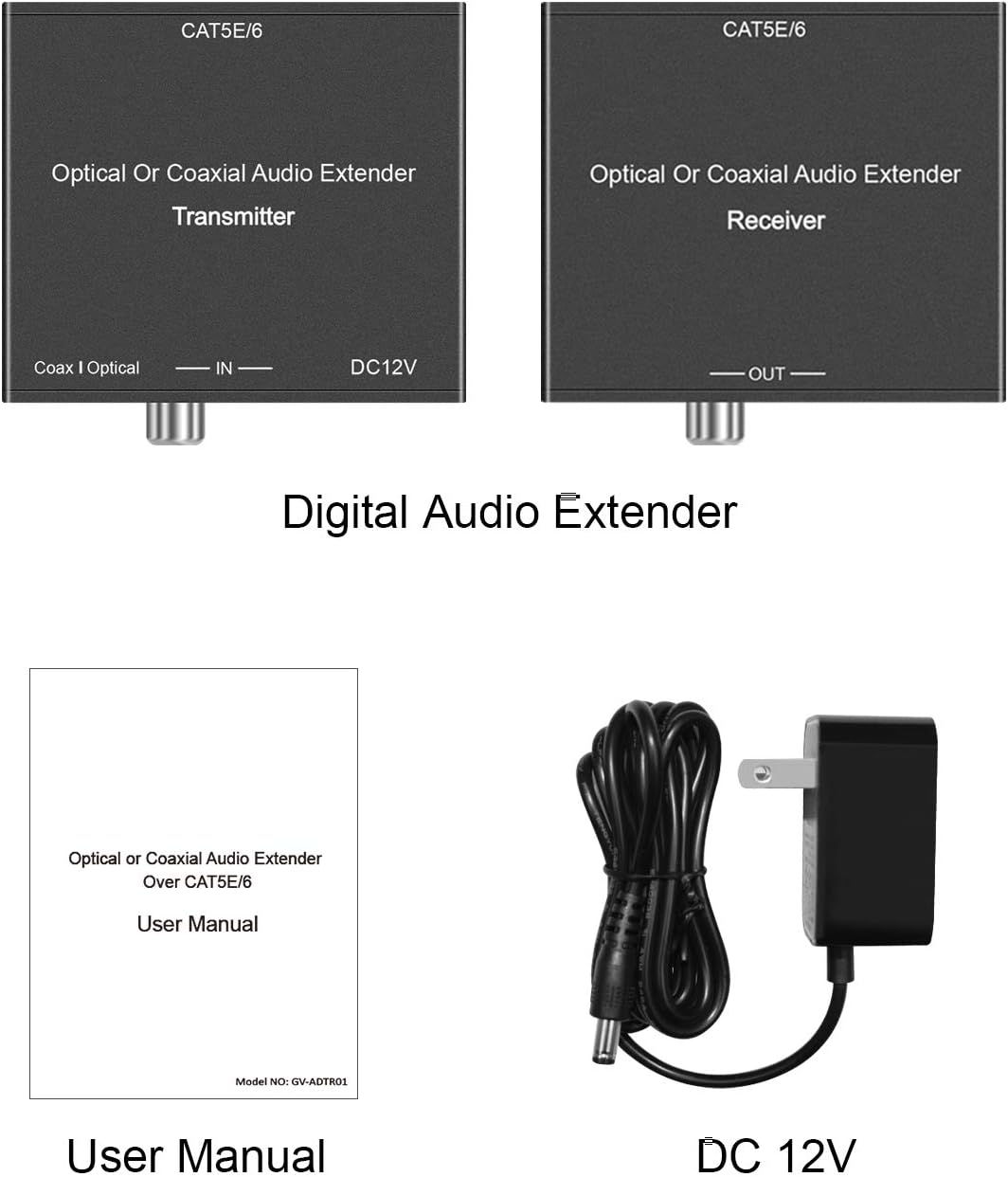

Digital Audio Extender Over Ethernet Supports most standards to transmit one uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as DD Plus or DTS High Resolution Audio over one Cat5e/6 Cable SPDIF and Toslink digital audio up to 500ft via cat5e/6. transmitted over cat5e/6, so just only need to plug in Transmitter unit to be powered. Digital Audio Extender built in surge suppressor to protect audio equipment against damaging voltage spikes. Supports DD 5.1, DTS, and D True HD. Digital Audio Extender Specification Data Transmission Rate ：12.8 Mb/s Sampling rate：Coax(SPDIF) ，Optical(TOSLINK) ，Up to 96kHz TOSLINK spec: Wavelength 660nm(Red), Level -15dB(Max) SPDIF spec: Input/Output impedance 75 ohms, level 500mVp-p Max. Distance(Cat5e/6): 500ft (150m) Power: Power input 12VDC(TX or RX) Surge Protection: 2KV (different-mode), 4KV (common-mode) Cable – UTP: 24AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20μF/foot. Attenuation: 6.6 dB/1000ft at 1 MHz Package Contents: Digital Audio Extender DC 12V Power Adapter User Manual
- Digital Audio Extender: allows digital optical(Toslink) or digital coaxial (S/PDIF) audio signal to be transmitted over Cat 5E/Cat 6 cable.
- Standard Supported: LPCM, DD5.1, DTS, and D True HD.
- Sampling Rate: Coax(SPDIF), Optical(Toslink) , Up to 96kHz, Max. Distance:500 Foot, Data Transmission Rate:12.8 Mb/s.
- Digital Audio Extender transmitted over cat5e/6, so just only need to plug in Transmitter unit to be powered.Power input 12VDC with Indicator Red Led.
- Extender built in surge suppressor to protect audio equipment against damaging voltage spikes.
| UPC | 750076279694 |
|---|---|
| Interface | Coaxial, Ethernet, RJ45 |
| Brand Name | Y.D.F |
| Unit Count | 1.0 Count |
| Item Weight | 3 Ounces |
| Manufacturer | Oneme |
| Material Type | Copper |
| Mounting Type | Cable Mount |
| Number of Pins | 8 |
| Number of Channels | 7 |
| Included Components | 1 Pair Digital Audio Extender Over Ethernet |
| Maximum Supply Voltage | 12 Volts |
| Minimum Supply Voltage | 12 Volts (DC) |
| Smart Home Compatibility | Not Smart Home Compatible |
