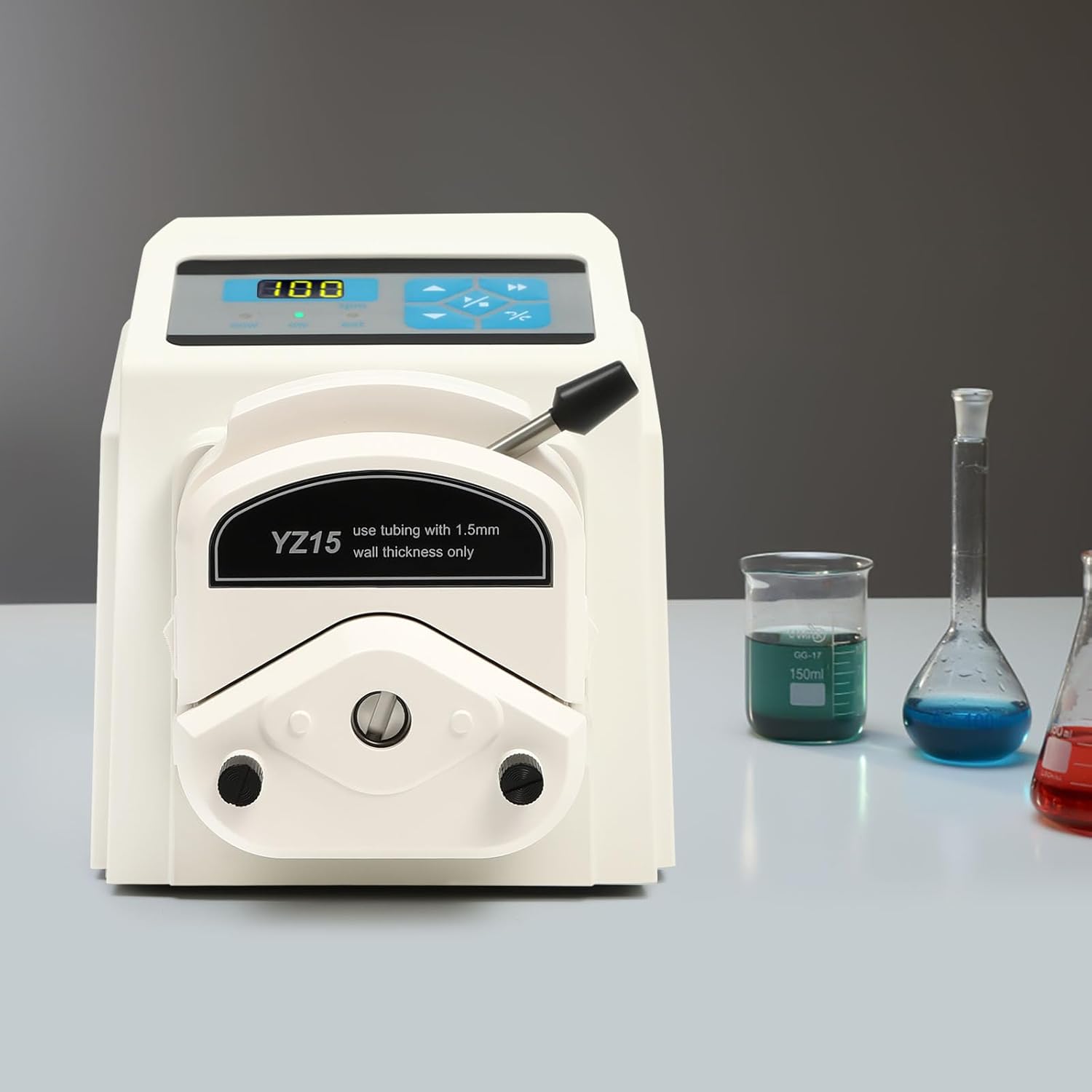

YZ15-13A Peristaltic Pump, 0.07-380 mL/min Flow Rate, 0.1-100 RPM, Digital Display with RS485, 110V, for Lab Pharmaceutical Chemical Dosing, Includes 13.1ft Tubing

DescriptionThis high-speed peristaltic machine is made of high-quality ABS, PPS, and stainless steel ensuringlong-term use. It can adjust the speed, flow rate, and direction of rotation freely through the control panel and connected external controls. At the same time, its 3-digit LED display screen and convenient switch buttons also better assist your observation and operation. It will be a good helper in your work.It can only match hoses( 13#, 14#, 19#, 16#, 25#, 17#, 18#) with a 1.6mm wall, can be used in education, research, testing institutions, industry, filling, production, pharmaceutical, food industry, factory production lines, laboratories, research institutions, equipment for rapid filling, emptying, dispensing and non-viscous liquid delivery.DetailsDrive External Interface: The drive external interface allows it to control the machine through external information, increasing its applicability.Anti-slip Feet and Spacers: The anti-slip feet on the bottom can better maintain the stability of the product and ensure smoother operation. Spacers inserted at the edges prevent noise from vibration between the chassis shell and the bottom plate after the motor is started.Indicator Light: When the product is rotating forward or backward, the indicator light corresponds to CW (green) or CCW (blue), making it easy for you to check the situation in a timely manner.13.1-ft Tube: The length of 13.1ft is enough for you to use it in different locations with less restrictions, meeting your various needs.SpecificationColor: BeigeDrive Mode: ElectricMaterial: ABS, PPS, Stainless SteelPower Source: Corded ElectricShape: RectangularAssembly Required: NoPlug Type: US StandardNumber of Items: 1Model: YZ15-13AAvailable Tubing: 13#, 14#, 19#, 16#, 25#, 17#, 18#FlowRate Range (m/min): 0.07-380m/minTube Wall Thickness: 1.6mm/0.063inResolution: 0.1rpmSpeed Range: 0.1-100rpmPower Supply: AC 90-260V, 50/60HzMaximum Power: 30WProtection Level: IP31Decibel: Less Than 60 dBDirection Of Rotation: Forward/Reverse(Corresponding Indicators are CW (Geen) / CCW (Blue))Adjustment Method: Membrane Button and Rotary AdjustmentDisplay Mode: Three-Digit Led Digital Tube Displays the Current SpeedExternal Control Interface: Start-Stop Control, Direction Control, Speed Control ( 0-5V/0-10V, 4- 20mA,0-10kHz)Communication Method: Rs485Working Environment: Ambient Temperature 0-40℃/ 32-104℉Relative Humidity: <80%Length of Tube: 4m/13.1ftGross Weight: 3.4kg/ 7.49 lbsProduct Size: 15.22*24.24*15.8cm/ 6*9.54*6.22inPackage Size: 41*24*21cm/ 16.1*9.4*8.3inPackage Included1* Peristaltic Pump1* #17 Tube(13.1ft)1* Power Cord 1* English InstructionNotes1. Please use tubing with 1.6mm wall thickness only.2. Please strictly follow the instructions for operation.3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

• PRECISE FLOW CONTROL: Variable speed peristaltic pump with adjustable flow rate of 0.07-380 mL/min and speed range of 0.1-100 RPM, featuring LED digital display for easy monitoring of speed, direction, and operational status
• DURABLE CONSTRUCTION: Built with high-quality ABS casing, PPS pump head, and stainless steel components for rust-resistance and long-lasting durability, with IP31 protection level and quiet operation below 60 decibels
• VERSATILE OPERATION: Forward and reverse rotation capability with power-off memory function, external control interface supporting RS485 communication, and compatibility with multiple tube sizes (13#, 14#, 16#, 17#, 18#, 19#, 25#) with 1.6mm wall thickness

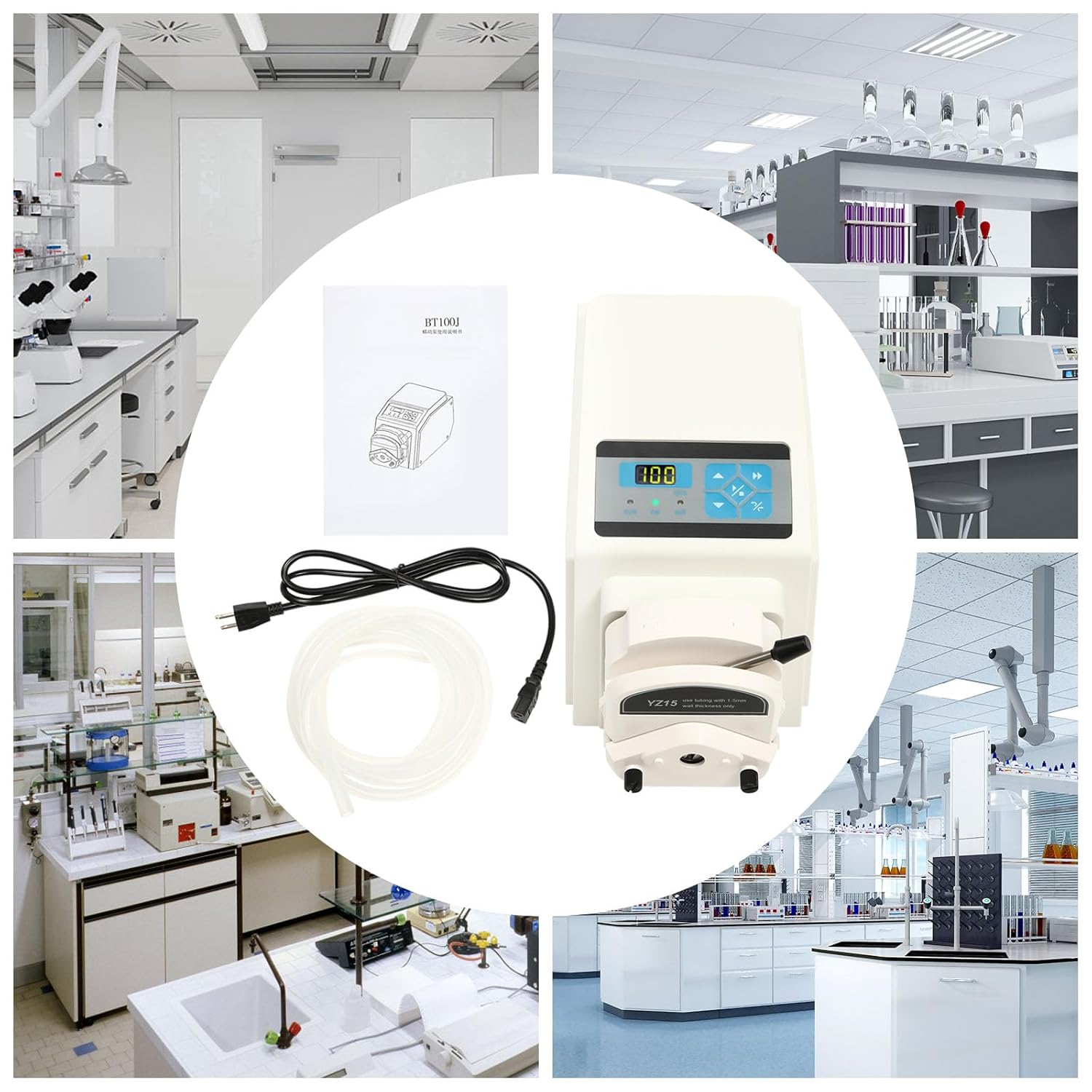

• COMPLETE PACKAGE: Includes peristaltic pump unit, 13.1-foot #17 tubing, power cord with US plug (AC 90-260V, 50/60Hz), and detailed English instructions for quick setup and operation
• WIDE APPLICATION: Ideal for laboratory, pharmaceutical, chemical dosing, and food industry applications requiring precise liquid transfer, filling, emptying, and dispensing of non-viscous liquids in research and production environments
